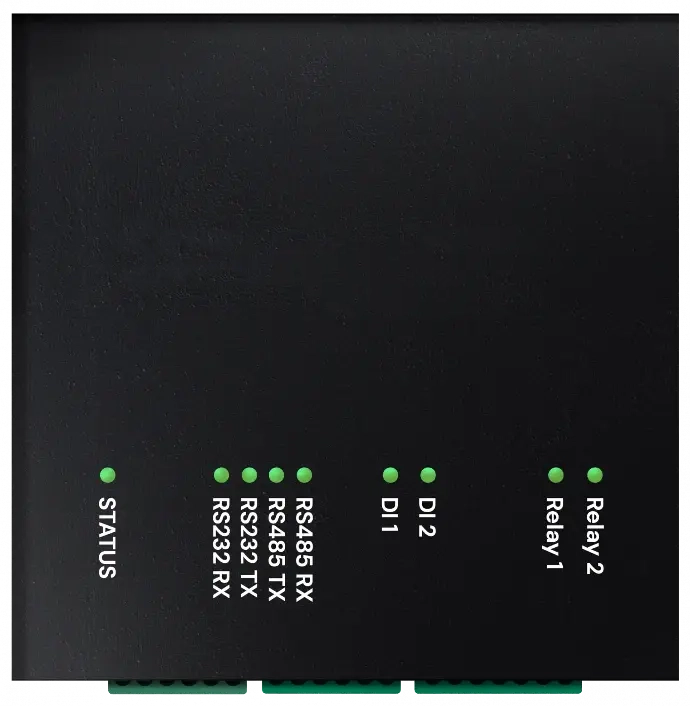

SmartgridOne Pro (Model OM1)
Warning
Warning
The status LED is not available on version 1.15.0.9 and earlier.
| LED Color | Behavior |
|---|---|
| Off | The SmartgridOne Controller is not powered on |
| Green / blue | The SmartgridOne Controller is booting |
| Green | The SmartgridOne Controller is operating as normal |
| Purple (heartbeat blinking) | The SmartgridOne Controller has no internet |
| Red / Yellow(blinking) | Factory reset is in progress |
| Red | The SmartgridOne Controller is in error state |

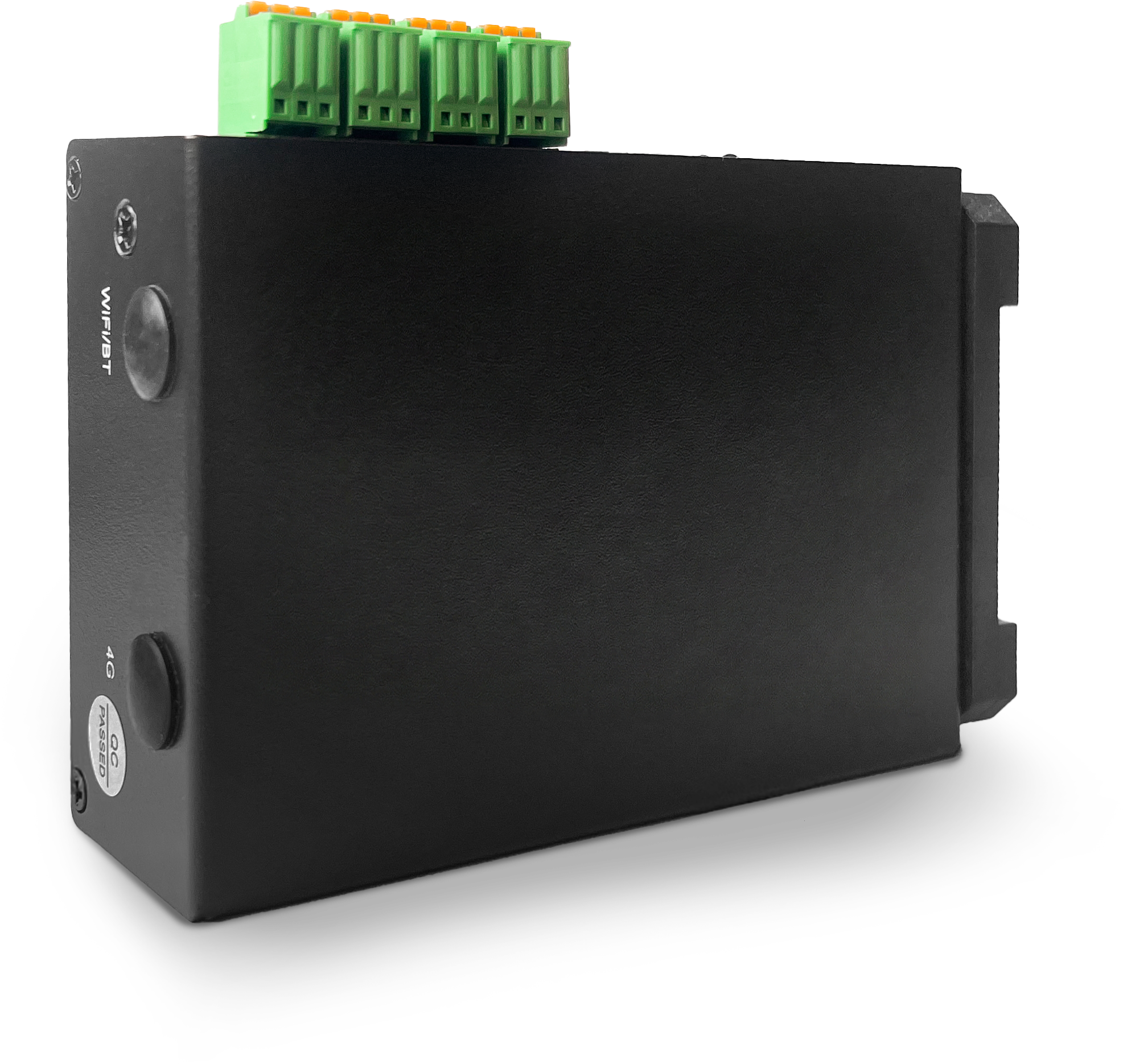

SmartgridOne Home (Model EDS)
Power LED (Red)
| Power LED | Behavior |
|---|---|
| Off | The SmartgridOne Controller is not powered on |
| On | The SmartgridOne Controller is powered on |
Status LED (Green)
| Status LED | Behavior |
|---|---|
| Erratic on/off | The SmartgridOne Controller is booting |
| Continuously on | The SmartgridOne Controller is operating as normal |
| Heartbeat blinking | The SmartgridOne Controller has no internet |
| Three fast blinks followed by three slow blinks | The SmartgridOne Controller is in error state |

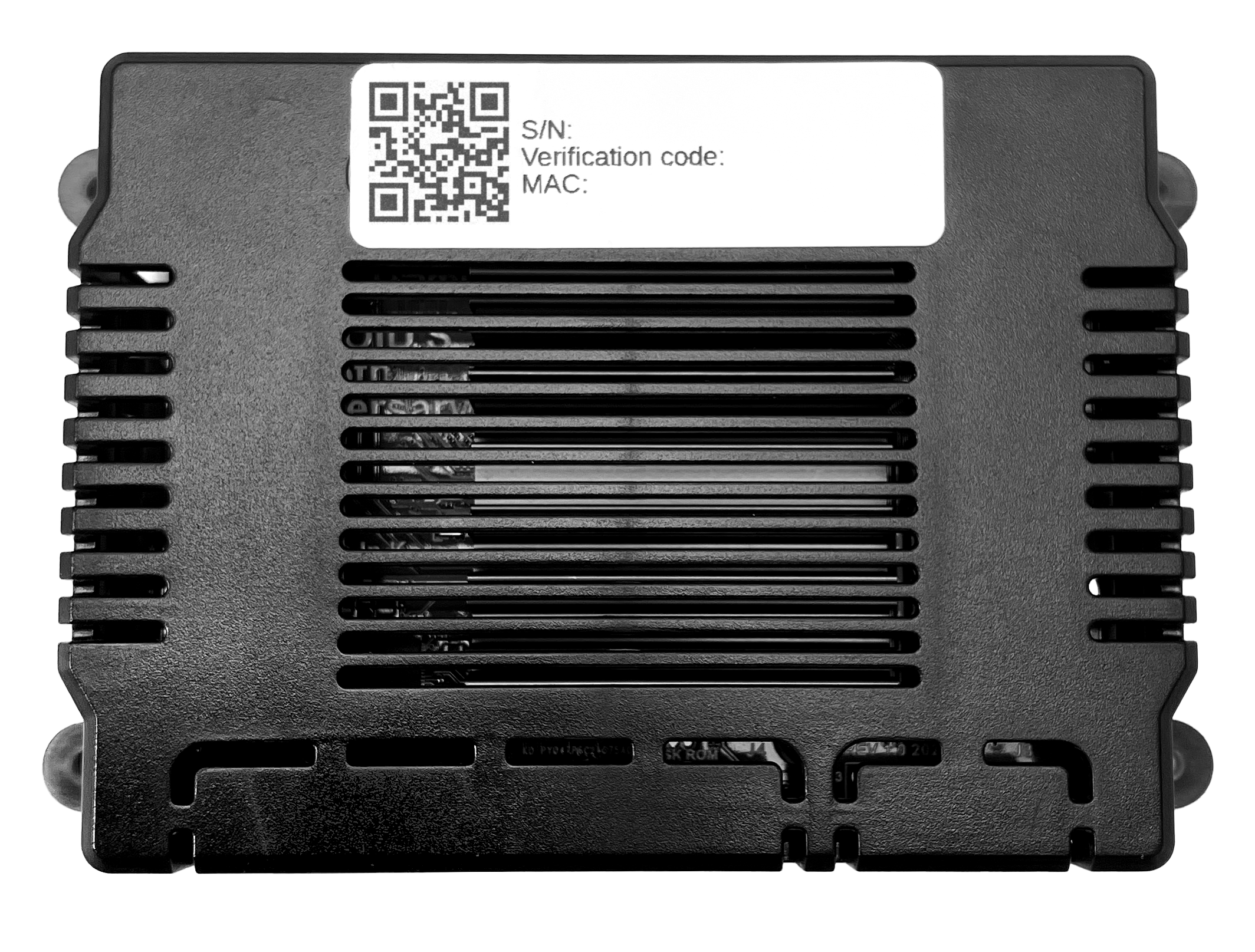

SmartgridOne Lite (Model M1S)
The SmartgridOne Lite does not have status LEDs.
